超高疏水性光學膜 - 宇鈞先端材料 UGAM

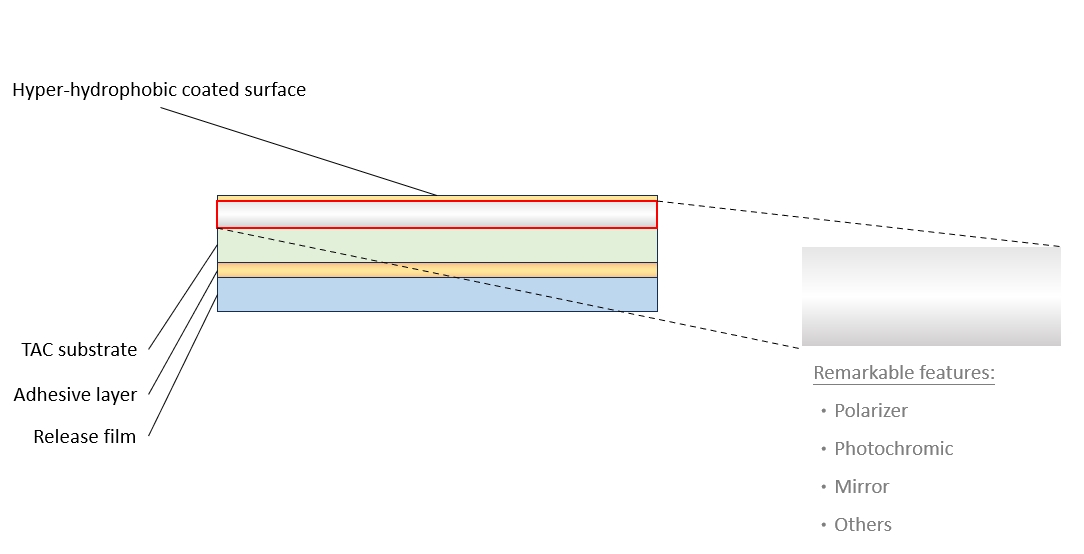

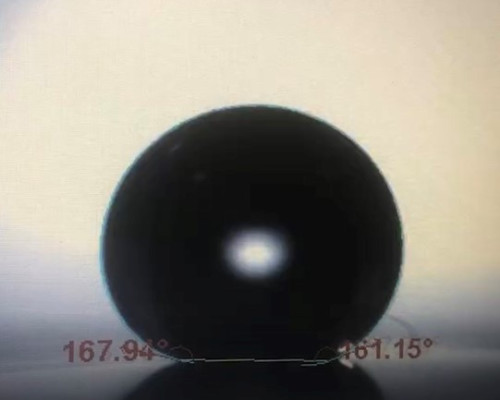

An ultra-high water contact angle hydrophobic film with high light—transmittance film has developed by UGAM. The surface water contact angle of the film after special nano-treatment is greater than 150°, forming a highly hydrophobic surface like a lotus leaf. In addition, UGAM also uses the excellent optical characteristic TAC film to apply this hyper-hydrophobic treatment on the surface, further improving the overall optical transmittance.
The internally measured transmittance in the visible light region can reach over 95%.

Product Name~	Roll Length	Film Thickness※1	Transmittance※2	Water Contac Angle※3
HYDP-RT085D	300M ±10%	~85um	~95%	≧ 150°

※1 Detected by the internal film-thickness micrometer gauge

※2 Refer to JIS K 7361, detected by HITACHI 4000 spectrometer

※3 Detected by the internal operating standards

Display window, Cover lens, Lens overlay,…….etc.

※1 Detected by the internal film-thickness micrometer gauge

※2 Refer to JIS K 7361, detected by HITACHI 4000 spectrometer

※3 Detected by the internal operating standards

※4 Detected by the internal operating standards

Display window, Bath partition, Diving goggle, and Water eyewear,…….etc.
